In Line One-Piece Type 2 Modules Selective Wave Soldering Machine HRX-31D Two Independent Pot Selective Solder

MOQ:	1Set
prezzo:	Negoziabile
standard packaging:	Woodencase
Delivery period:	45 giorni di lavoro
payment method:	L/C, T/T, Western Union
Supply Capacity:	100 set/mese

Informazioni dettagliate

Product Description

Informazioni dettagliate

Luogo di origine

Marca

HONREAL

Certificazione

Numero di modello

HRX-31D

Documento

Pressione di N2 richiesta:

0.4-0.6MPA

Nome prodotto:

Saldatura ad onde selettiva online HRX-31D

Categoria del prodotto:

Macchine per saldatura a onde selettive SMT

Peso netto:

2500 kg

Asse di posizionamento:

X, Y, Z

Dimensione:

L4193 x W1645 X H1630mm

Dimensioni massime del vettore:

L580 X W460mm

Metodo di riscaldamento:

Preriscaldamento del top aria calda; Preriscaldare a infrarossi a onde corte

Evidenziare:

selective wave soldering machine HRX-31D

two pot selective solder machine

SMT wave soldering machine with warranty

Product Description

In Line One-Piece Type 2 Modules Selective Wave Soldering Machine HRX-31D Two Independent Pot Selective Solder

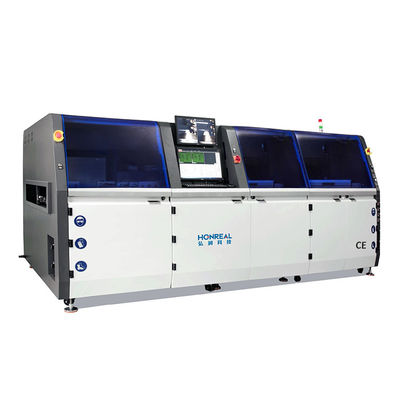

High Productivity In-line Selective Soldering Machine HRX-31D

Advanced selective soldering solution with high efficiency and quality performance.

Key Advantages

Fully functional online model with spray, preheating and welding three-stage configuration
Segmented independent PCB transport guide for improved production efficiency
High welding quality with improved pass rate
Comprehensive preheating system with lower IR, upper hot air, and upper IR heat compensation
Modular SMEMA online transportation design for flexible line formation
Full PC control with parameter saving capability for repeatable soldering quality

Technical Specifications

Parameter	Value
Equipment type	HRX-31D
Machine size	L4193 x W1645 x H1630mm
Total machine power	35kw
Machine operating power	9-12kw
Power source	Three-phase five-wire system 380V
Net weight	2500KG
Air source pressure requirements	0.4~0.6Mpa
Nitrogen source pressure requirements	0.4~0.6Mpa
Nitrogen source flow requirements	≥4 cubic/hour
Nitrogen source purity requirements	≥99.999%
Communication interface	SMEMA

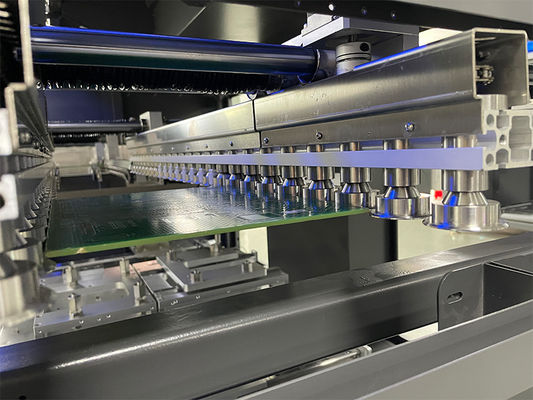

Transport Module Specifications

Feature	Specification
Maximum PCB size	L508 x W460mm
PCB board edge	More than 5mm
Transport direction	Horizontal from left to right
Headroom on PCB board	120mm
PCB board bottom clearance	60mm
Transport bearing capacity	≥10Kg
Transport height	900±30mm

Software Features

Independent software system with complete intellectual property rights
Live solder process display via camera
Critical parameter monitoring (temperature, speed, pressure)
Offline programming capability
Multiple programming methods (Gerber, camera scanning, PCBA scanning)

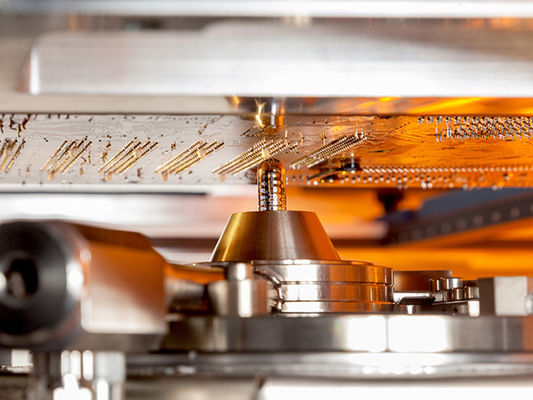

Automatic wave peak height correction
Comprehensive PCB menu storage for historical data tracking
LOG function with 3-level access rights

Support and Services

Our SMT Selective Wave Soldering Machine requires minimal maintenance but comes with comprehensive support:

Remote technical assistance via phone or email
On-site support services including installation, training, and maintenance
Dedicated technical team for peak performance optimization
